Chart cell

NotebooksLearn about notebooks vs. projects

The Chart cell provides a no-code option for building, exploring, and customizing charts with Observable Plot. With point-and-click menus for variable selection, aggregation (e.g. mean, sum, or count), faceting, color mapping, and more, the Chart cell makes it possible for anyone—regardless of programming experience—to quickly create and iterate on data visualizations.

Add a Chart cell

To add a Chart cell, open the add cell menu by clicking the gray plus sign () in the left margin of a notebook. From there, two things can happen:

  1. If the previous cell in your notebook contains data (including in a JavaScript, data table, or SQL cell), you will see a suggestion to "Create chart" in gold in the add cell menu. Click to insert a new Chart cell using the previous cell's data.

  2. If the previous cell in your notebook does not contain data, search or navigate to "Chart" in the add cell menu. Click to insert an empty Chart cell, then choose an available data source (from a cell or attached file) using the drop down menu in the cell header.

The two add cell menu scenarios for inserting a Chart cell are shown below:

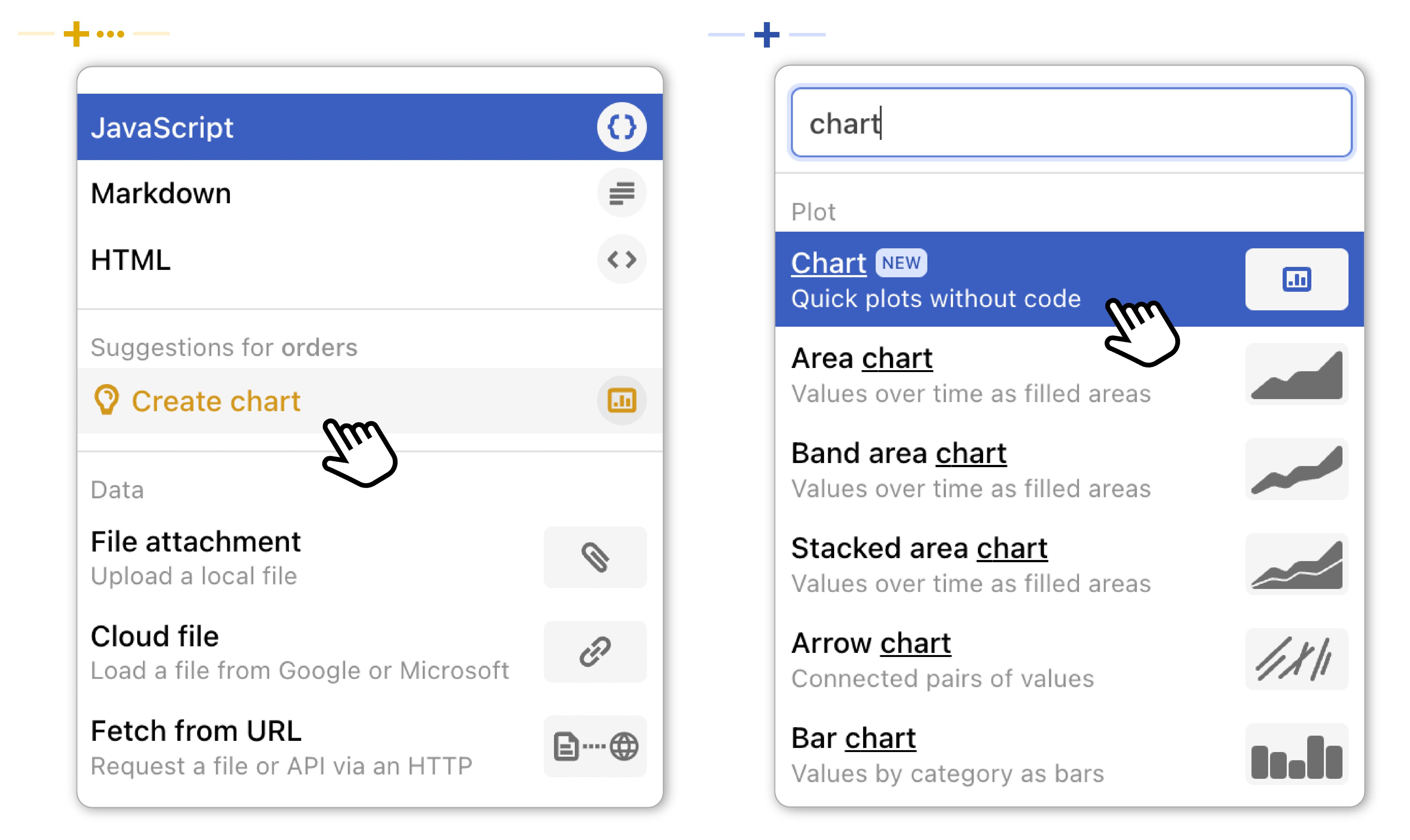

One screenshot showing two different add cell menu dropdown situations. The first on the left shows 'Create chart' in the 'Suggestions for orders' section of the dropdown in gold font. The second shows the search bar at the top of the dropdown with the word 'chart' typed in it and the Chart cell option as the first suggested.
Add cell menus for inserting a Chart cell into an Observable notebook. Left: Add cell menu with suggestion to create a Chart cell from data in the previous cell (in this case, the data is named orders). Right: Add cell menu without suggestion, with the Chart cell option highlighted.

Once selected, a Chart cell is inserted into the notebook. A new (blank) Chart cell is shown below:

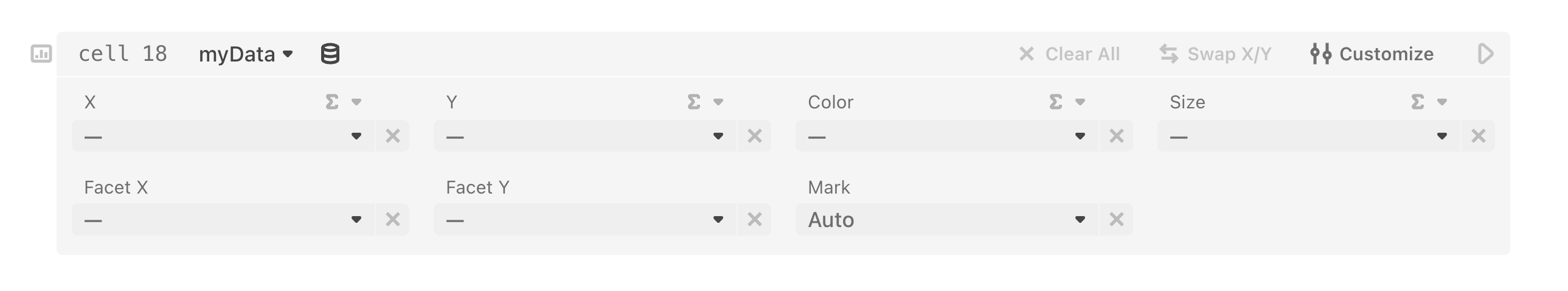

A Chart cell with only a data source selected so that there is no chart rendered.
An example of a blank Chart cell with a data source.

Choosing variables for X and/or Y reveals a chart above the cell:

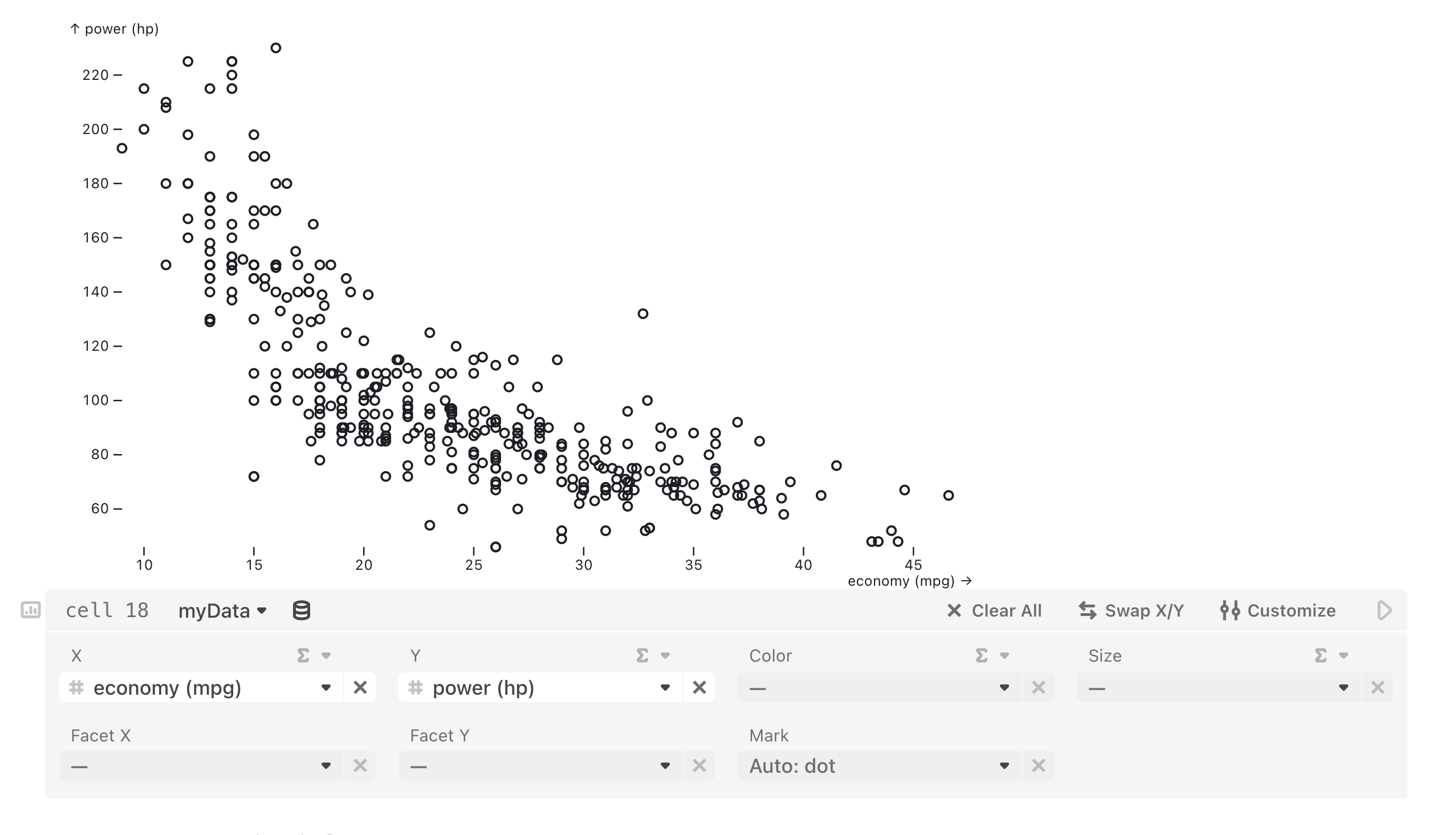

A Chart cell with economy (mpg) chosen as the X variable and power (hp) chosen as the Y variable. The rendered chart above shows a scatterplot resulting from the calculations.
An example of a Chart cell with data source and chosen data dimensions for X and Y.

To change the data source in the Chart cell, open the dropdown menu alongside the current data source and select an alternative source that exists in the notebook:

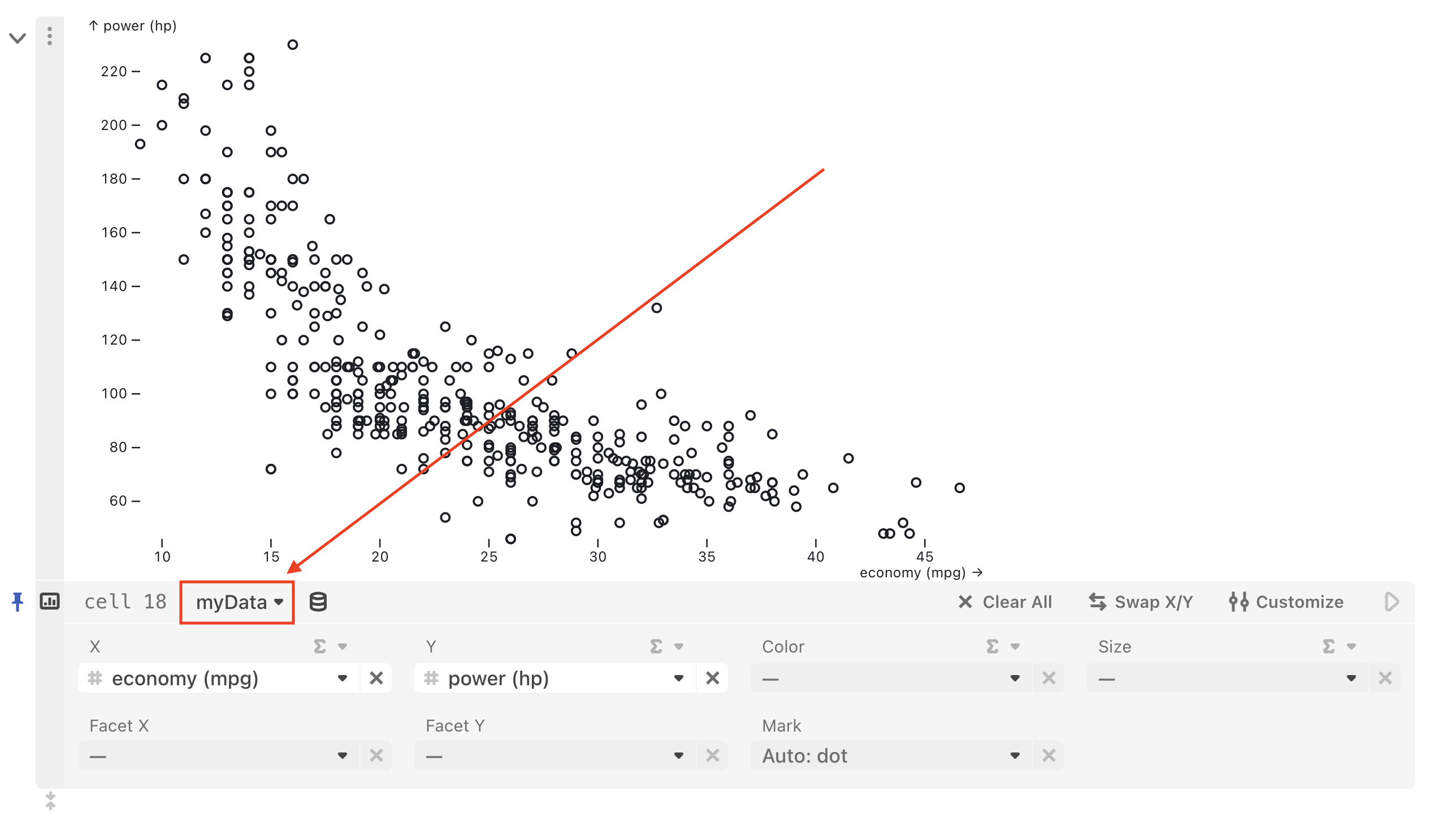

The same Chart cell featured in the previous screenshot but with the data source and data source dropdown highlighted with a red rectangle outline and an arrow pointing to it.
Change the data source easily with the data source dropdown.

Chart types

Under the hood, the Chart cell employs—a special mark that automatically selects a mark type that best represents the given dimensions of the data according to some simple heuristics. Depending on selected variable types, the following chart types are currently possible in the Chart cell:

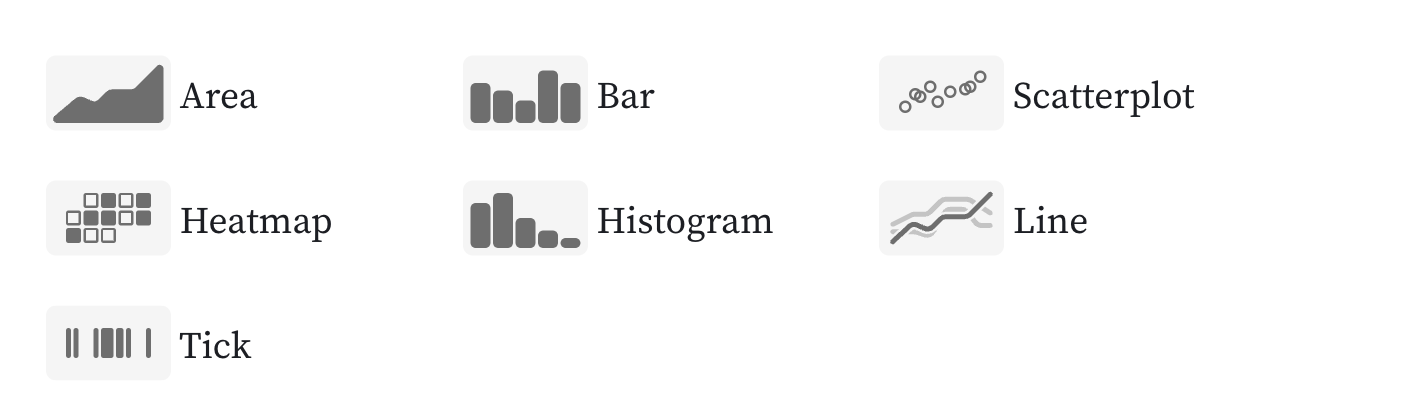

The seven types of chart you can make with a Chart cell: area, bar, scatterplot, heatmap, histogram, line, and tick.

When you pick a column for x or y, the Chart cell will show a histogram (or bar chart) of the frequencies of different values in that column. The Chart cell will automatically bin values if the data is numbers or dates, or group them by unique categories if they're strings. The dropdowns will show the automatic selections that made the chart (like "Auto: count" and "Auto: bar"), which you can always override.


The screenshots of the charts below are created entirely using the Chart cell.

Setting either x or y to a column of your data renders a histogram. Note that, below, the y reducer says "Auto: count" and the mark says "Auto: bar", each of which you can override.

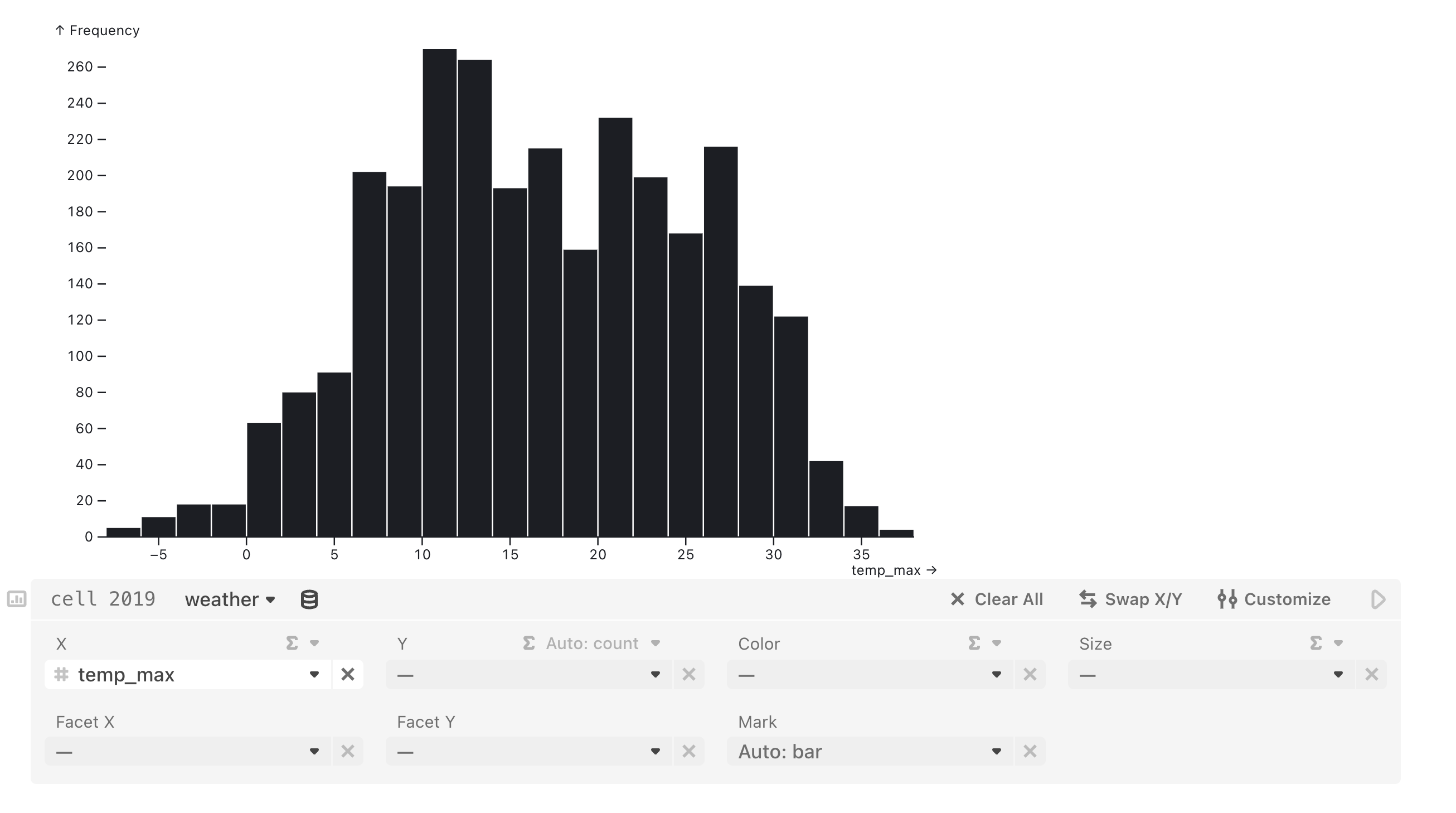

A screenshot of a Chart cell-rendered histogram after selecting a value for the X axis, 'temp_max' of the 'weather' table.
A histogram is being autogenerated as the user has selected a value for the X axis.

Selecting numeric columns of your data for x and y, then selecting a category for Facet X, renders a faceted scatterplot. Here we've also set color to species.

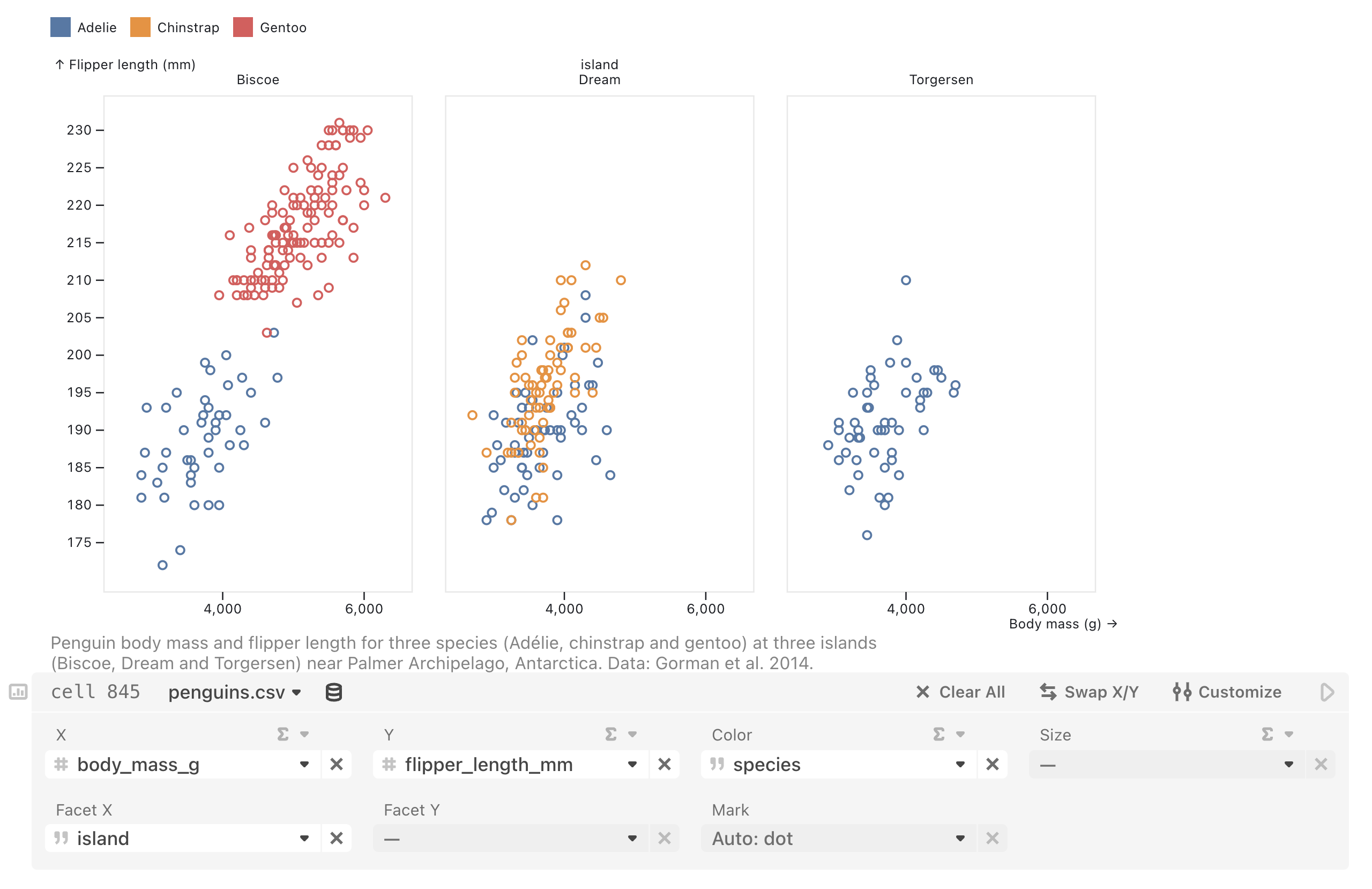

Some penguins data in a faceted scatterplot made with the Chart cell.
Body mass to flipper length scatterplot faceted by island and colored according to species.

Selecting an x and y where one of them (usually x) is continuous and sorted, e.g. by date, then updating the mark to line will produce a line chart. Here, we additionally choose color to visualize different series by location.

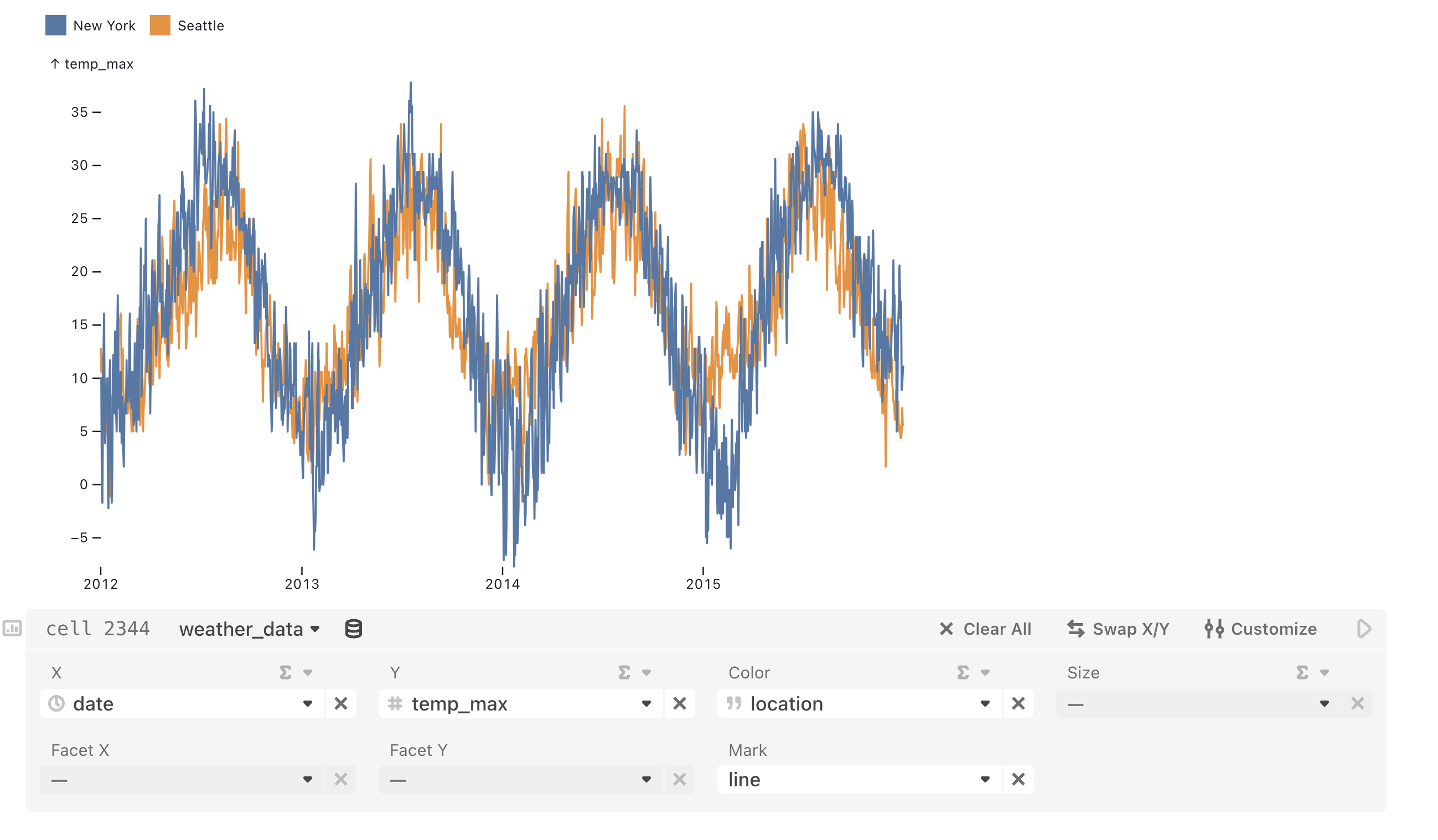

A screenshot of a line chart comparing Seattle and New York weather data across time.
A line chart using continuous data on the x axis.

A stacked bar chart is rendered by selecting one column for x; then, for y, we've selected both a column (co2) and the sum reducer; we make it stacked by picking a categorical column for color, which segments the bars by that category.

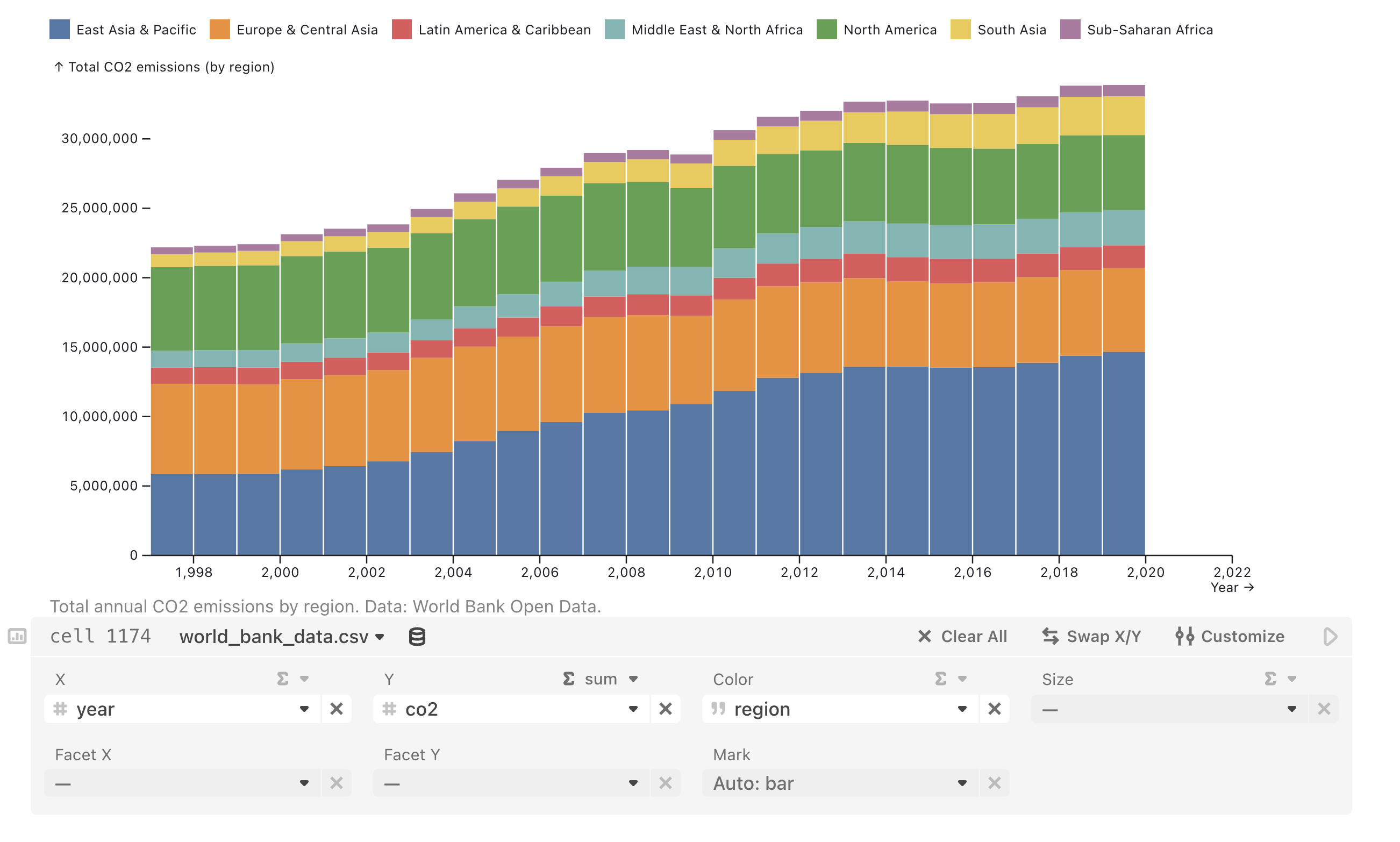

A screenshot of an open Chart cell featuring a stacked bar chart.
A stacked bar chart made with the Chart cell.

Selecting columns for x and y, then choosing a "count" as the reducer for color, will produce a heatmap.

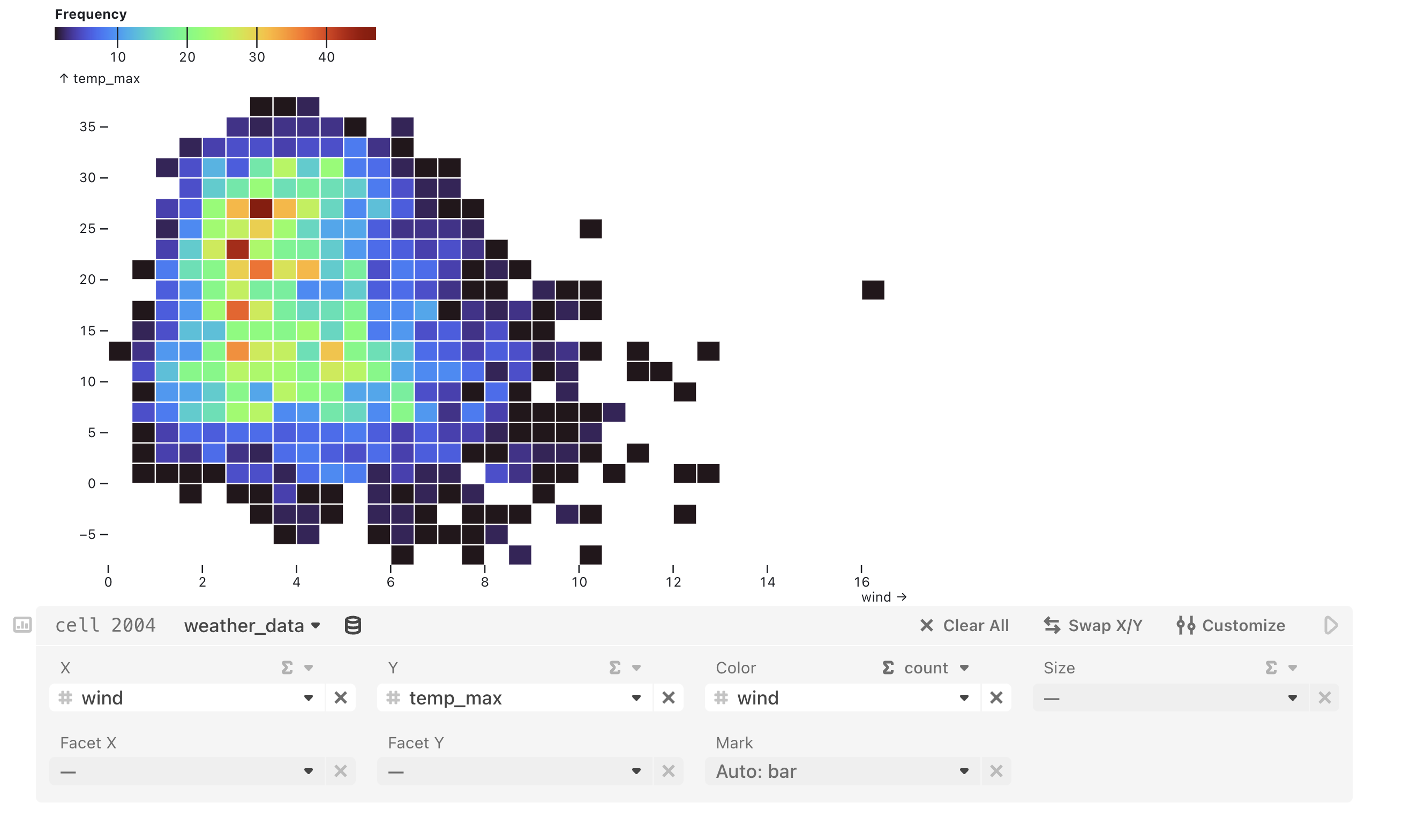

A screenshot of an open Chart cell featuring a heatmap of wind and temperature data.
A heatmap made using "count" as the reducer for color.


For x, y, color, and size, you can pick a reducer from the menu above the field dropdown. The following reducing functions can be applied: count, distinct, sum, min, max, mean, median and mode. For example, the Chart cell below produces an area chart of pizzeria revenue (sum of the revenue column on the y-axis) over time, with color indicating different days of the week.

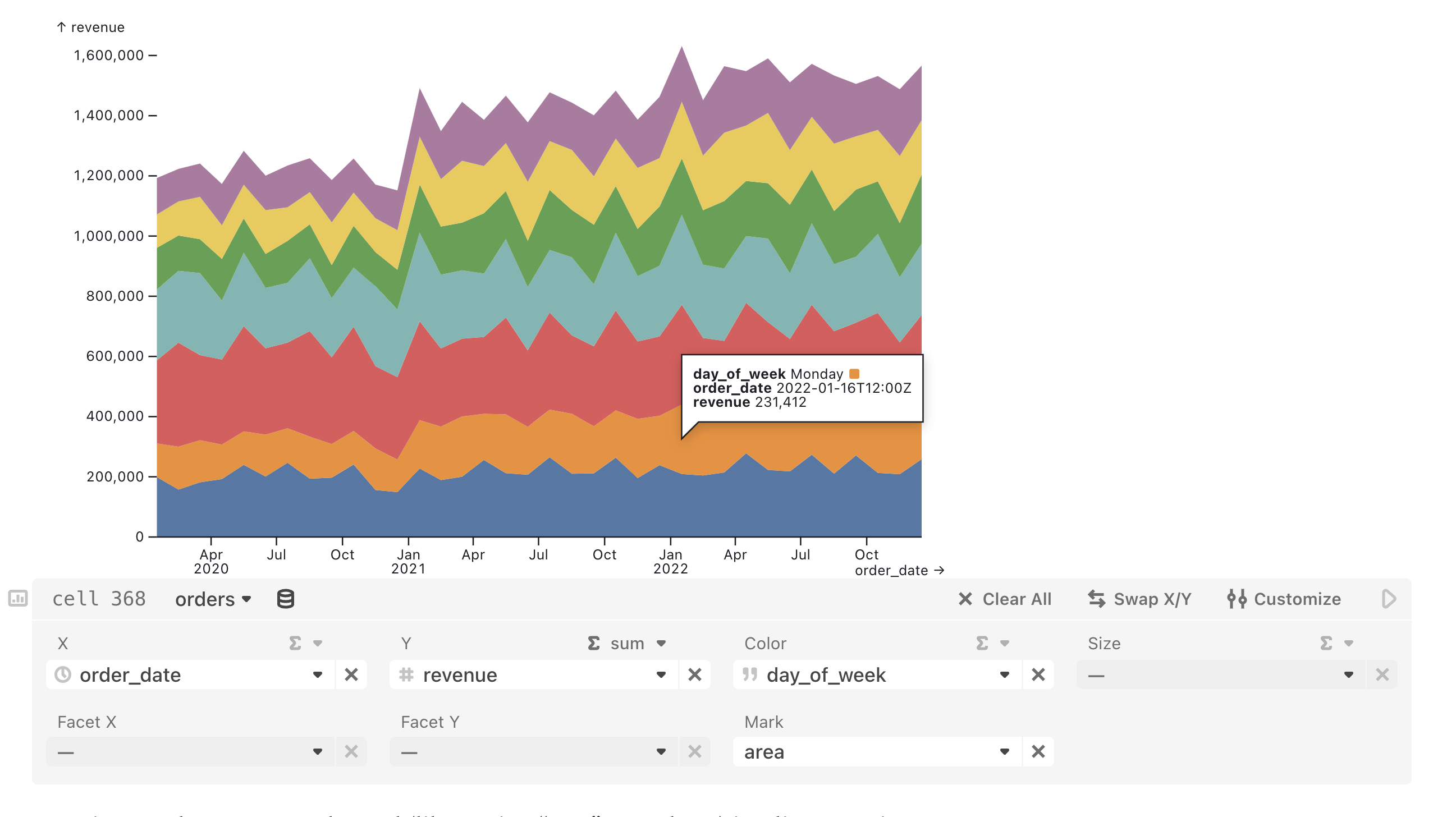

An open chart cell featuring a stacked area chart of revenue and date data.
Pizza revenue by order date stacked by color for the revenue by day of the week.

Setting a reducer on one channel (like setting "sum" on y above) implies grouping (for categorical data) or binning (for numeric or temporal data) one or two other channels:

Setting a reducer onGroups or bins onTo make a
xyHorizontal histogram
yxVertical histogram
colorx and yHeatmap
sizex and yDot plot


With the Chart cell added to a notebook and connected to a data source, you can update field selections using the dropdown menus to control the variables, chart type, color and size channels, and faceting. A long dash () in the dropdown menu of any field indicates that a variable has not been selected.

XSelect the x-axis variable and an optional reducing function to apply (e.g. sum, mean, count). If only one variable is selected, a histogram or bar chart is created by default.
YSelect the y-axis variable and an optional reducing function to apply (e.g. sum, mean, count). If only one variable is selected, a histogram or bar chart is created by default.
ColorSelect either a single color to apply to all marks or a variable that is mapped to a color channel, and an optional reducing function to apply (e.g. sum, mean, count). Color updates the stroke color for line and scatterplot charts, and the fill color for area, bar, and heatmap charts.
SizeSelect a variable that is mapped to dot size (r), and an optional reducing function to apply (e.g. sum, mean, count).
Facet XSelect a faceting variable to split the chart into separate panels side-by-size horizontally (one for each distinct value in the faceting variable).
Facet YSelect a faceting variable to split the chart into separate panels vertically (one for each distinct value in the faceting variable).
MarkSelect a different Plot mark (auto, bar, dot, line, area, or rule).


Iterate and explore charts further using other features of the Chart cell that let you clear selections (for one or all fields), swap x and y variable selections, and customize your chart.

Clear selection for the given field
Clear allClear selections for all fields
Swap X/YSwap selected X and Y variables in chart
CustomizeOpen customization pane (to update chart dimensions, margins, labels, gridlines, color scheme, scale types, reverse a scale, add or remove a legend, and add a caption)

Data types

The data type of a column (e.g. numeric, string, date, etc.) may determine what kinds of charts are possible. Icons to the left of the column names in the dropdowns show the data type for each.

Data Type IconDescription
Date or datetime
Boolean (true/false)

The Size field updates the radius for a dot mark, and can only be updated using quantitative data (i.e. continuous or discrete numeric values).

Convert to JavaScript

You can convert a Chart cell to JavaScript to create a new cell with the underlying, equivalent, code. It's a regular Plot mark, so you can combine it with other marks or pass in any of the standard Plot options. For more information, see the documentation.

One way to enact the conversion is to hit the 'Convert to JavaScript' button at the bottom-right corner of a focused Chart cell:

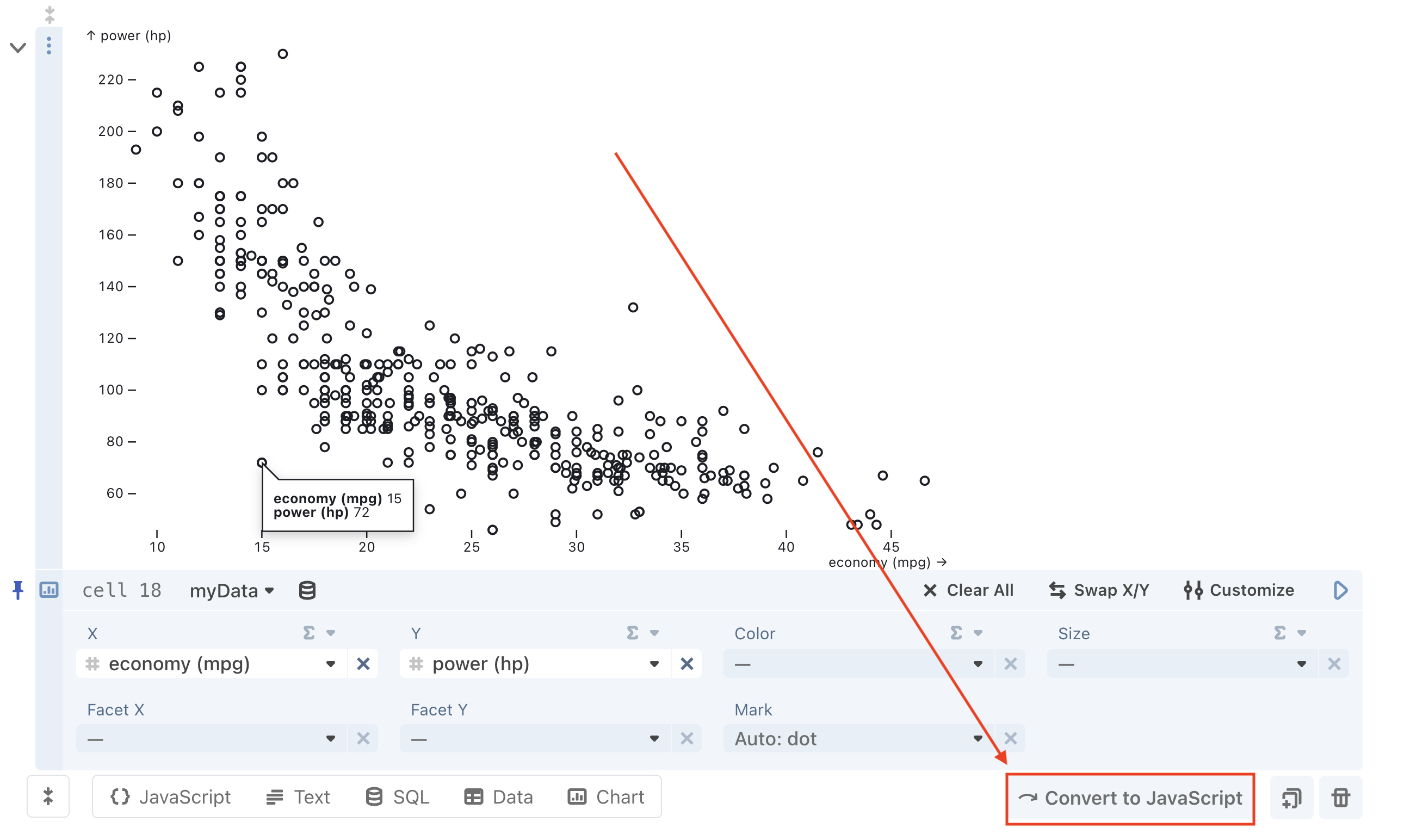

A focused open Chart cell with a red arrow overlayed over the picture pointing to the Convert to JavaScript button in the lower-right corner of the cell, which is highlighted by an overlayed red rectangle outline.
The Convert to JavaScript button in a focused chart cell.

You can also select the add cell button below a Chart cell and you'll see this suggestion:

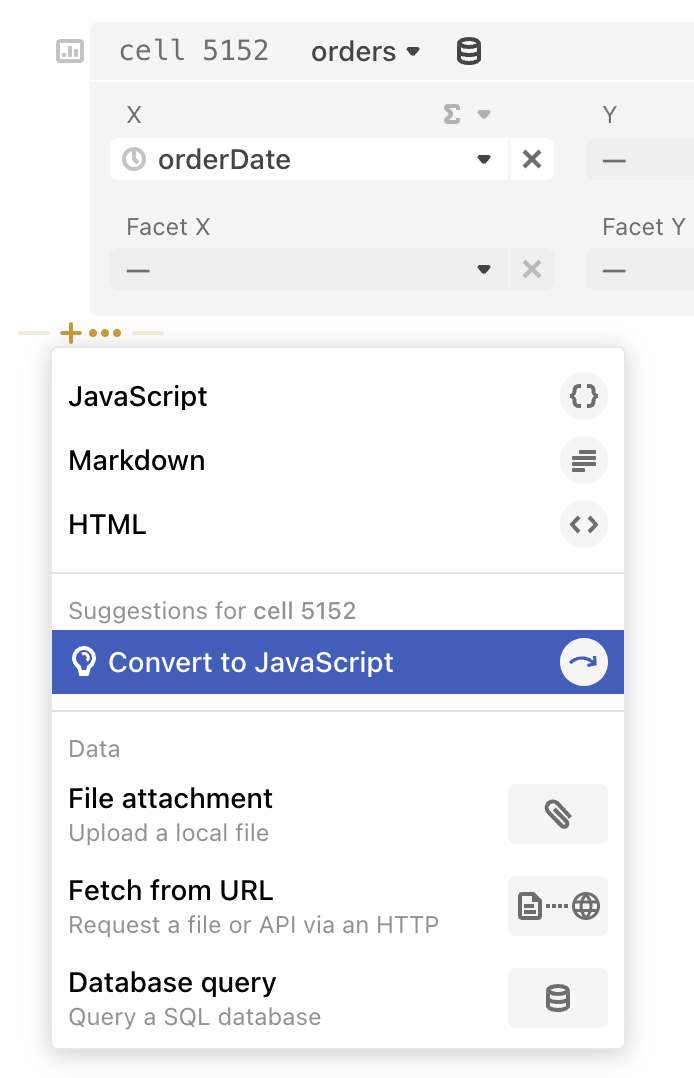

A zoomed in screenshot of the bottom of a chart cell and the Add cell menu of the following cell opened right below with the menu option 'Convert to JavaScript' highlighted.
In the Add cell menu of the cell following a Chart cell you see 'Convert to JavaScript' as a menu item.
